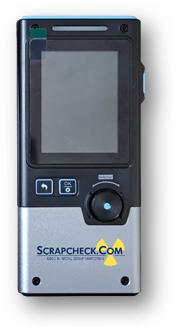

SC01 Radiation Survey Meter


The SC01 Radiation Survey Meter is a compact, professional-grade handheld device designed for real-time monitoring of nuclear radiation. It provides accurate detection of gamma rays, X-rays, and hard beta particles. Equipped with a 2.4-inch HD color display, this meter is ideal for a wide range of radiation measurement applications.

Key Features


  • High sensitivity GM tube detector
  • 3 alarm modes: Sound, Light, and Vibration
  • Real-time data display with quick response
  • Lightweight and portable with long battery life
Technical Specifications
Sr.No. Item Technical Specifications
1. Display 2.4 inch Color LCD Screen
2. Power 5V/1Amp (Type-C Charging Point)
3. Battery 1500mAh (Long-Lasting Battery, more than 15 hours continuous use)
4. Language English
5. Measurements 140mmx65mmx35mm (LxHxW)
6. Net Weight 150g
7. Units μsv/h
8. Range 0.01μSv/h 999.99μSv/h
9. Detector Energy compensation GM tube

(GM tube for precision detection, high sensitivity and low power consumption.)
10. Detection Gamma rays /X-rays/ Hard β Rays radiation
11. Dose Current Rate 0.00-10000 μSv/h (10mSv/h)
12. Cumulative Dose 0.00μSv-500.0mSv
13. Energy Range 48keV-1.5MeV≤±15%（for 137Cs）
14. Dose Unit μSv/h, μGy/h, mR/h, CPS, CPM
15. Audio Visual Alarms Light, vibration, sound
16. Boot Time 5 Sec
17. Response Time Base sampling rate is 200 mSec, screen updates every 1Second
18. Temperature -10° to +50°C
19. Humidity 95% condensing
Terms & Conditions

Delivery Terms   :   Immediate Delivery Against Payment from Delhi
Payment Terms   :   Time-Limited Flexible Payment Terms Applicable on Orders of More Than 20 Units
Warranty   :   24 Months from the Date of Invoice
Calibration Certificate   :   From NABL & AERB Approved Lab for 2 years.
